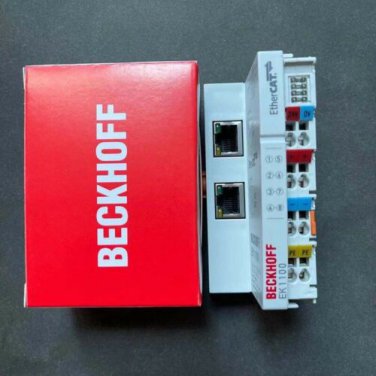

Technical data EK1100
Task within EtherCAT system coupling of EtherCAT Terminals (ELxxxx) to 100BASE-TX EtherCAT networks
Data transfer medium Ethernet/EtherCAT cable (min. Cat.5), shielded
Distance between stations max. 100 m (100BASE-TX)
Number of EtherCAT Terminals up to 65,534
Protocol EtherCAT
Delay approx. 1 µs
Data transfer rates 100 Mbit/s
Bus interface 2 x RJ45
Power supply 24 V DC (-15 %/+20 %)
Current consumption from US 70 mA + (∑ E-bus current/4)
Current consumption from UP load
Current supply E-bus 2000 mA
Power contacts max. 24 V DC/max. 10 A
Electrical isolation 500 V (power contact/supply voltage/Ethernet)
Operating/storage temperature -25…+60 °C/-40…+85 °C
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity 95 %, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos. IP20/variable
Approvals/markings CE, UL, ATEX, IECEx, DNV GL, cFMus
Ex marking ATEX: II 3 G Ex ec IIC T4 Gc
IECEx: Ex ec IIC T4 Gc
cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc
